Fig. 2
Download original image

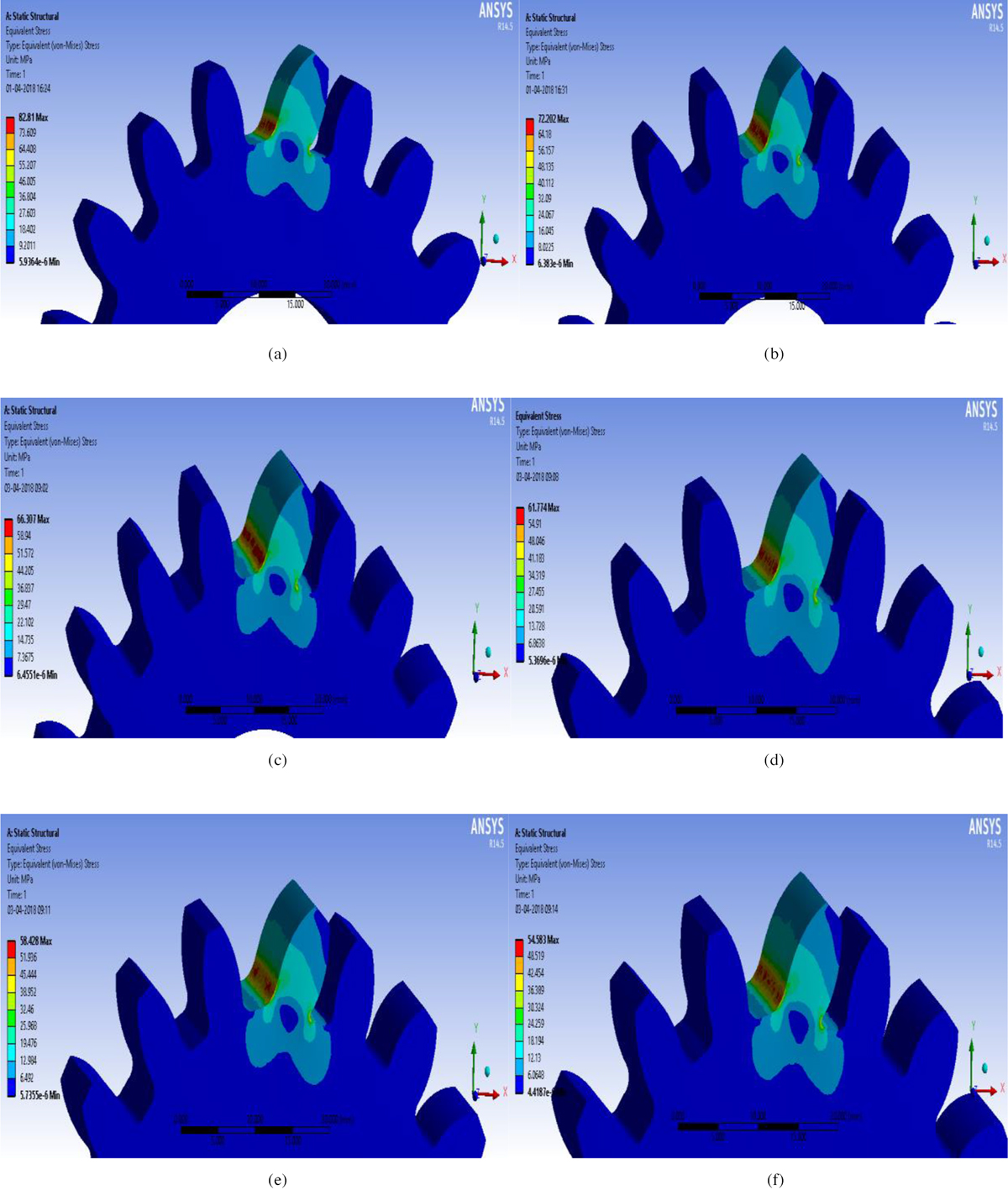

(a) Von-mises stress at gear with face width 20 mm; (b) Von-mises stress at gear with face width 22 mm; (c) Von-mises stress at gear with face width 24 mm; (d) Von-mises stress at gear with face width 26 mm; (e) Von-mises stress at gear with face width 28 mm; (f) Von-mises stress at gear with face width 30 mm.
