Fig. 16


Download original image

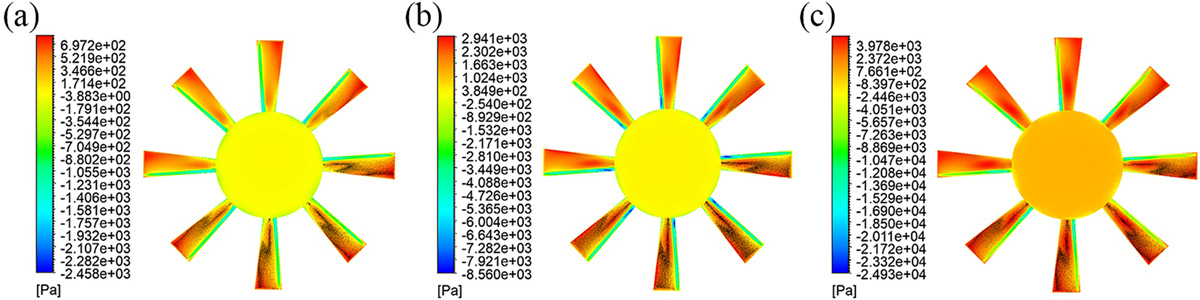

Rotational speed blade pressure cloud. In Figure. 16, (a)–(c) represent the simulation results at 1250 rpm, 1450 rpm and 1650 rpm, respectively.
