Fig. 1
Download original image

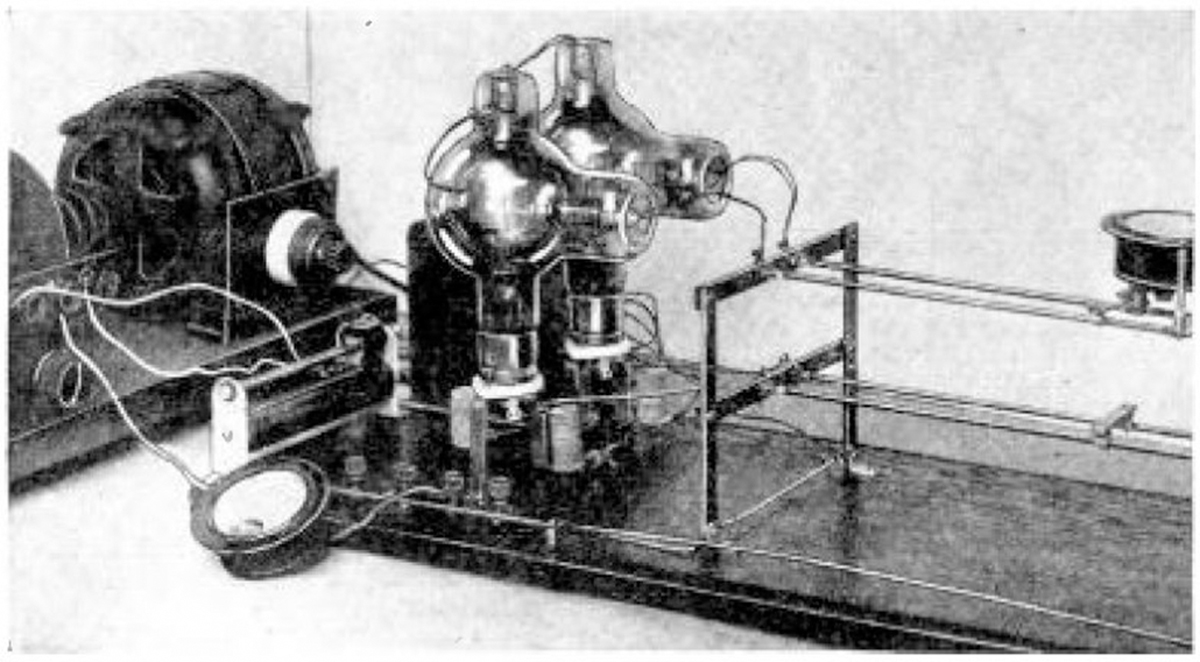

An experimental push-pull Barkhausen oscillator in 1933, which uses Lecher lines (quarter-wave parallel wire transmission line stubs) as the tank circuit. It could generate 5 watts at 400 MHz. Picture in the public domain (The Short Wave Craft magazine's copyright was not renewed after 1962 and it is in the public domain.).
