Fig. 1
Download original image

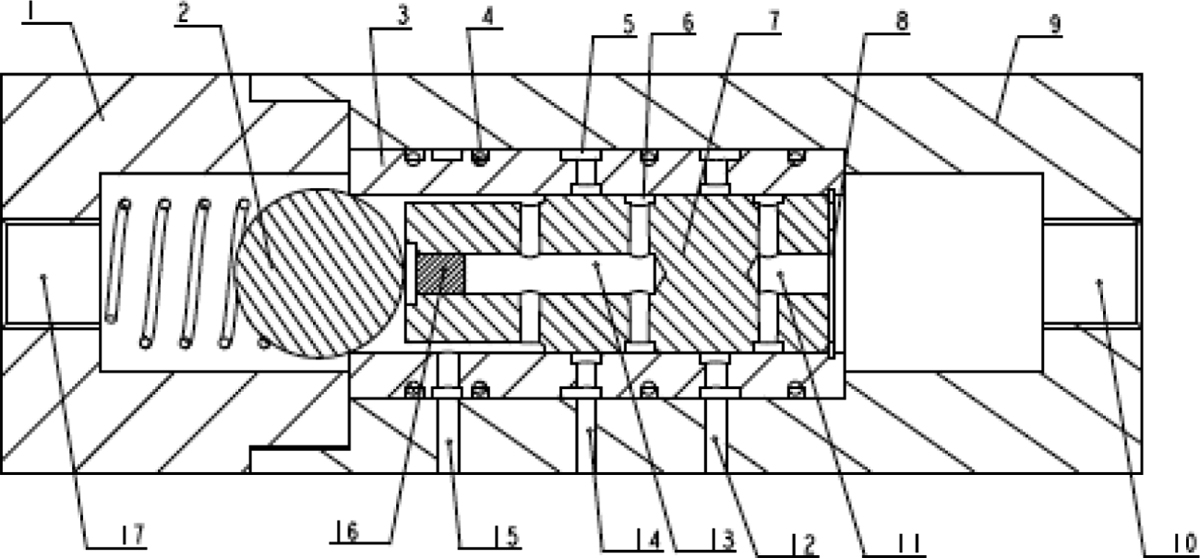

Structure of flow stabilizing valve. 1. Valve cover 2. Ball valve spool 3. Valve sleeve 4. Seal ring 5. Annular groove 6. Valve core annular groove 7. Valve core 8. Retaining ring 9. Valve body 10. Oil-in 11. Core oil passage A 12. Oil source unloading port 13. Core oil passage B 14. Load unloading port 15. Liquid filling port 16. End cap 17. Load oil port.
