Figure 6.
Download original image

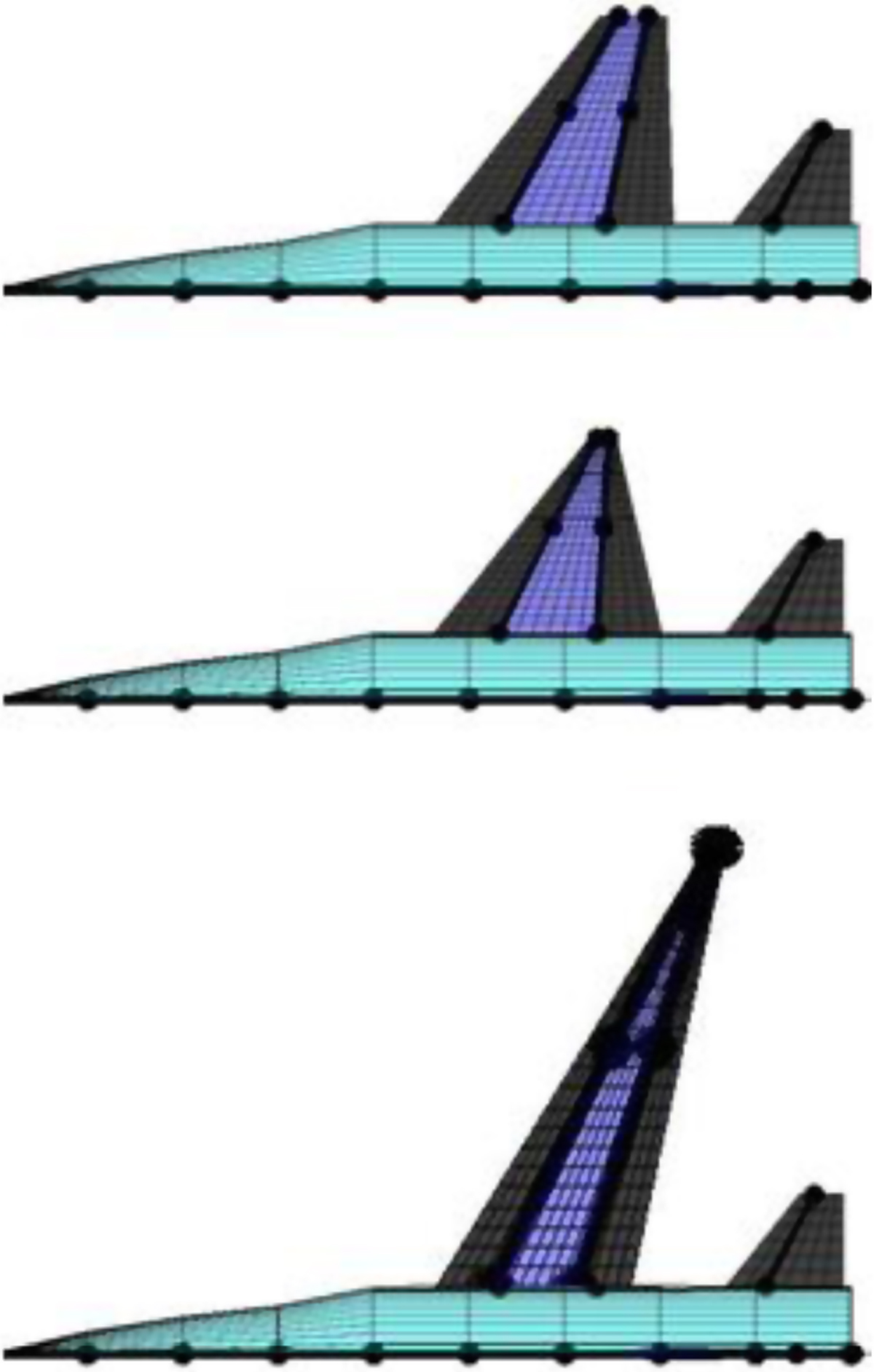

The ESAV optimization result half-span planforms: baseline 1550 mi range and 13,125 lb weight (top); 1500 mi range and 13,013 lb weight (middle); and 2500 mi range and 14,065 lb weight (bottom).
